An uplifting experience supporting your workshop needs!

Experience our versatile, smaller scissor lifting table!

The Bosch scissor lifting table offers easy, safe and efficient removal and installation around the vehicle. In particular engine, gearbox, chassis and electrical vehicle batteries. The table is compatible with any standard workshop crane due to the generous floor clearance. Along with its powerful lifting function the table also serves as a mobile workshop bench. Powered by wokshop air and designed with an abundance of features that focus on the ease of use and the technicians’ safety, this scissor lift places the technician at the forefront of technology.

Powered by compressed air with 1,000 kg payload.

Features:

• Medium size table top (1,315 mm) for servicing components with a weight of up to 1,000 kg


• Splitting function allows to separate components (such as engines and transmissions) to access inner parts (e.g. torque converter)


• Tilting function allows tilting the table in 2 axis to precisely align the component to the vehicle


• Additional extension of the movable table section up to 166 mm


• Smooth, safe and precise operation with partial load of up to 400 kg of the movable table section


• High-load casters with ball bearings and foot guard for smooth movement


• High-strength, zinc- galvanized steel assures long durability


• Bellows mounted around moving parts for reliable operator protection


• High ground clearance allows perfect positioning of workshop crane


• Conformity: CE certified and fulfills TÜV requirements

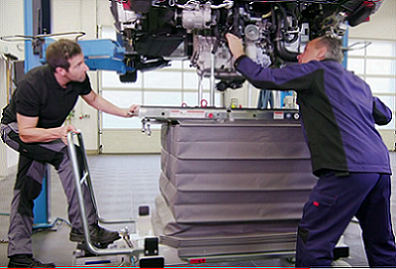

Click here to watch a video of the Bosch Lifting Table in use!

This lift table has a lower lifting capacity and a smaller wheelbase than "its big brother" 222 3502 022 00. We recommend it for workshops that do not plan to work on the large and heavy electric batteries.
