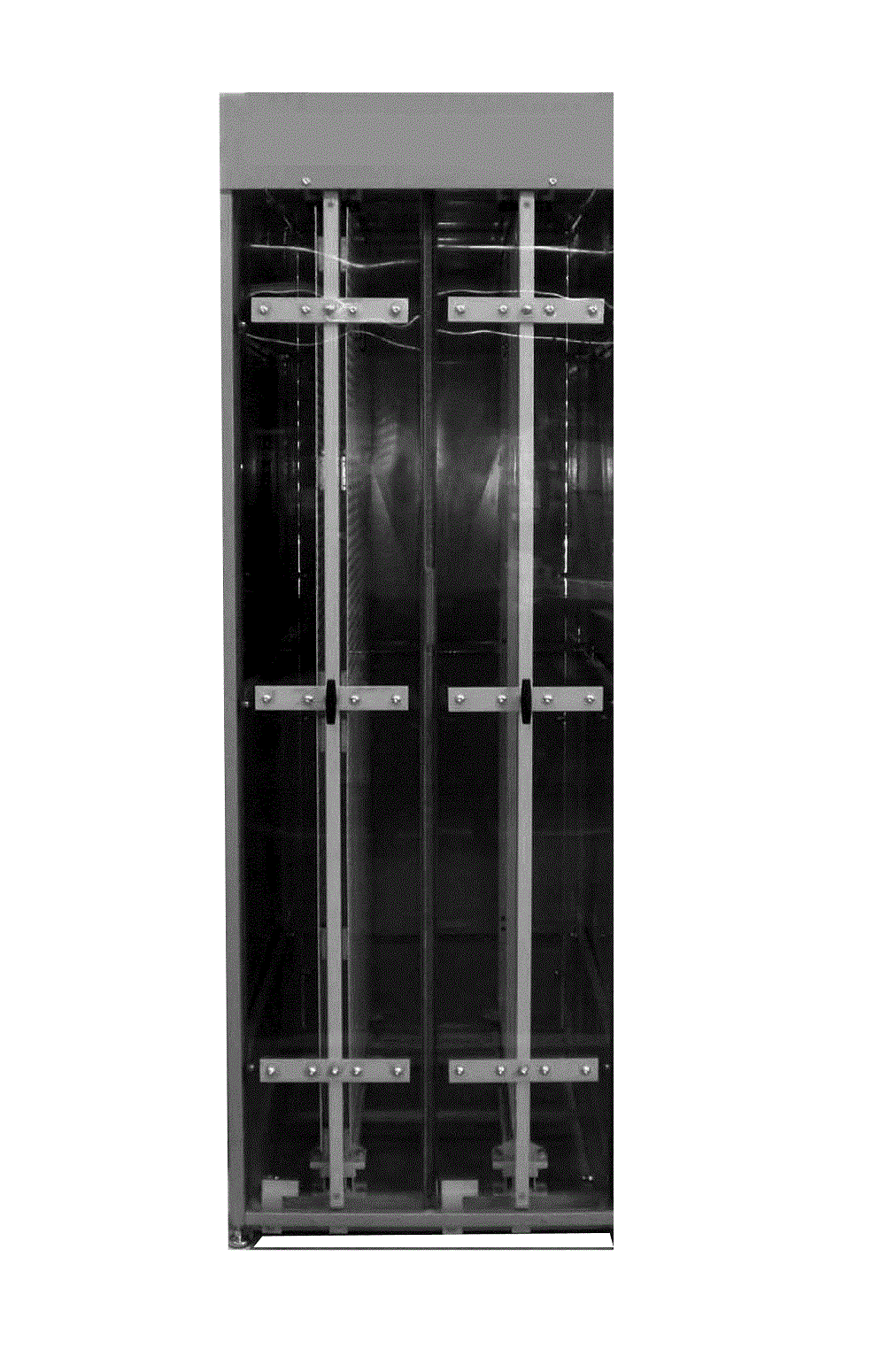

The Cabex® I Cabinet offers space-saving storage for a large number of tools – a single module can house up to 240 tools. Instead of or in addition to hanging tools off the tool boards, height adjustable shelves suitable for smaller items can also be mounted.

The Cabex® I features two vertical drawers which support up to 110 kg each with 4 tool boards each. The drawers are fully suspended from the cabinet frame itself which means they do not have any floor rollers that can catch or stick on uneven surfaces.

This modular system can be extended to the right and to the left. It is a strong, sturdy design which offers secure, transparent storage of all tools, components and cables.

Features:

Optimal space usage
Expandable modular design
Variable internal configurations
Fully suspended vertical drawers
Suitable for heavy loads

Technical Specifications - Cabex® I Cabinet:

Dimensions (closed): 1130 x 870 x 2210 mm
Dimensions (pulled out): 1950 x 870 x 2210 mm
Used space (closed): 0,98 m2
Used space (pulled out): 1,70 m2
Storage space: 8,40 m2
Max. payload: 220 kg (110 kg each arm)
Shipping dimensions: 2400 x 1100 x 500 mm
Shipping weight: 283 kg
